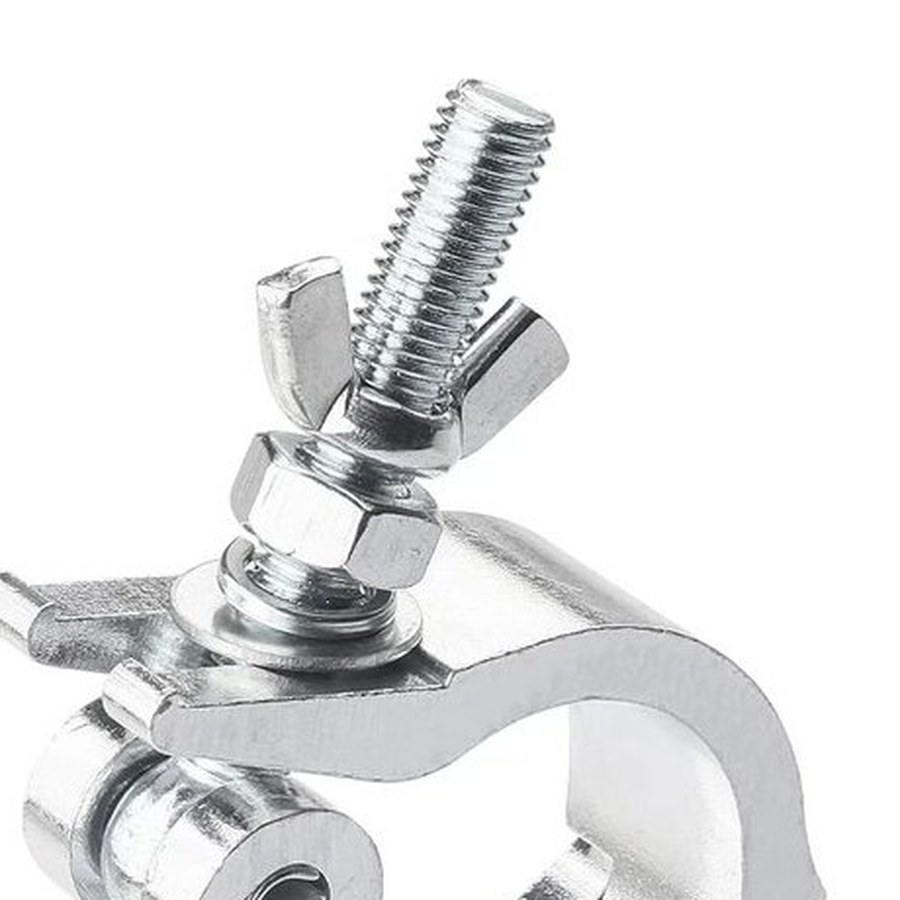

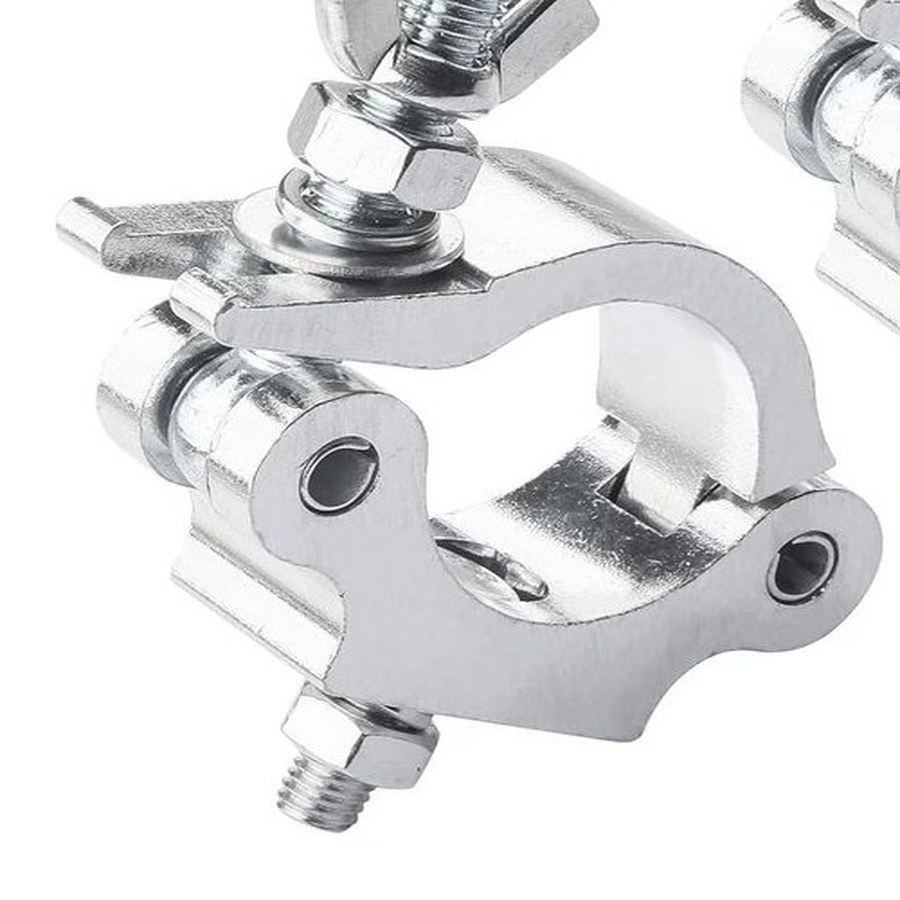

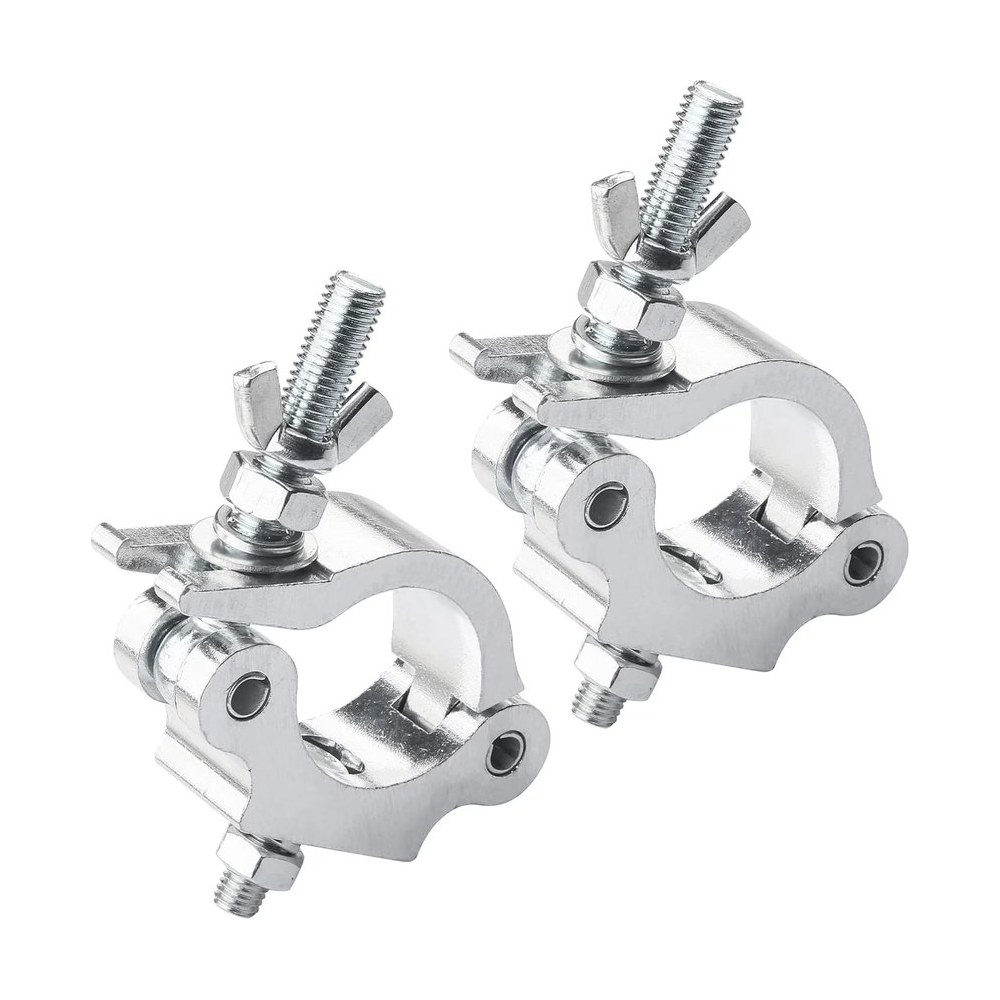

Cast A356 aluminium body with a rolled T-bolt. Grips 48–51 mm tube at 150 kg safe working load, and holds that grip after a hundred rigs because the thread is rolled, not cut.
| Model | TS-SC48 |
| Application | Ø48–51 mm truss tube, horizontal or vertical |
| Safe working load | 150 kg (proof tested to 300 kg per batch) |
| Body | A356-T6 die-cast aluminium, 6.5 mm wall at the jaw |
| Bolt | M10 T-bolt, rolled thread, grade 8.8 |
| Wing nut | Zamak 3, 62 mm span |
| Weight | 412 g ± 8 g |
| Finish options | Polished · Black anodised · Custom RAL powder coat |
| Operating temp. | −20 °C to +80 °C |
| Packing | 1 pc / PE bag, 40 pcs / carton, 480×360×280 mm, 17.8 kg |
| HS code | 7616.99 |
Jaw bore held to ±0.15 mm so the clamp seats on the tube without rocking. Each production batch is sampled at AQL 2.5 for dimensions and 100% visually inspected for casting porosity at the jaw radius — the one place a void would matter. Proof load 2× SWL on 3 pcs per 1,000.
| Logo application | Laser etch on body · pad print · embossed in the casting (tooling change) |
| Colour | Anodised black / silver / custom RAL from 500 pcs |
| Retail packaging | Printed colour box, hang tag, barcode, country-of-origin label |
| Master carton | Printed or plain, DC routing label, SSCC-18 barcode |
| Minimum for private label | 500 pcs per finish |
Quantity, destination port, and whether you need private label. We reply within one business day.
